Nickel grab

Short Description:

Product Detail

Product Tags

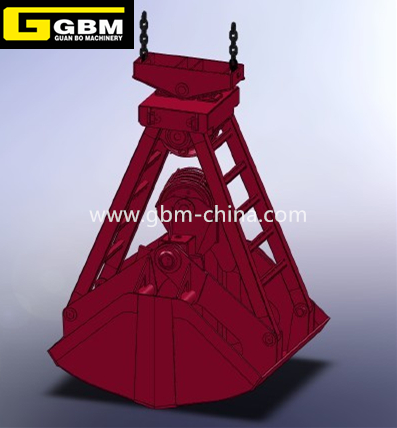

Nickel ore grabs are only suitable for picking up bulk materials. During the grabbing process of nickel ore, the nickel ore will be severely squeezed and the nickel ore will stick to the bucket and the grab will open. At that time, a large part of the material will stick to the bucket body. After the unloading is started, the grab must be closed before returning to grab the goods. The bottom plate of the new Nickel grab clamshell body is designed in a straight line and the interior of the bucket body does not have any ribs. In this way, when the grab grabs the nickel ore, the material will not be squeezed and the grabbed nickel ore will be loose, so the nickel ore will be completely unloaded when the grab is opened to discharge the material, and the grab will not need to be closed after discharge. Can continue to grab. In this way, the material will not fall down, hurt or fall to the ground or the sea during the entire crawling process, which will greatly reduce the pollution and loss.

SWL (t)			6.3	8.0	10.0	12.5	16.0	20.0	25.0
Dead weight(Kg)	4rate		2300	2800	3440	4500	5600	7360	8800
Dead weight(Kg)	5rate		2460	2880	3600	4660	5760	7520	9000
capacity (m3)	4rate		2.5	3.2	4.0	5.0	6.5	7.9	10.1
capacity (m3)	5rate		2.4	3.2	4.0	4.9	6.4	7.8	10.0
pulley	diameter (mm)		355	400	450	500	560	630	630
Wire rope	diameter (mm)		18	20	22	24	26	28	32
	Length m	4rate	11.5	12.8	13.8	15.0	16.5	17.8	18.6
	Length m	5rate	14.0	15.5	16.8	18.5	20.5	21.8	23.0
	stroke mm	4rate	5940	6600	7100	7680	8520	8920	9760
	stroke mm	5rate	7425	8250	8875	9600	10650	11150	12200
Dimensions(mm)	A		3080	3430	3700	4010	4380	4770	4990
	B		2600	2900	3100	3350	3640	4020	4120
	C		2220	2410	2610	2850	3070	3270	3530
	D		2540	2760	2950	3160	3450	3680	3910
	E		1800	1930	2070	2220	2420	2580	2730
	F		460	600	800	1000	1100	1280	1280
	G		380	430	480	530	590	670	670
