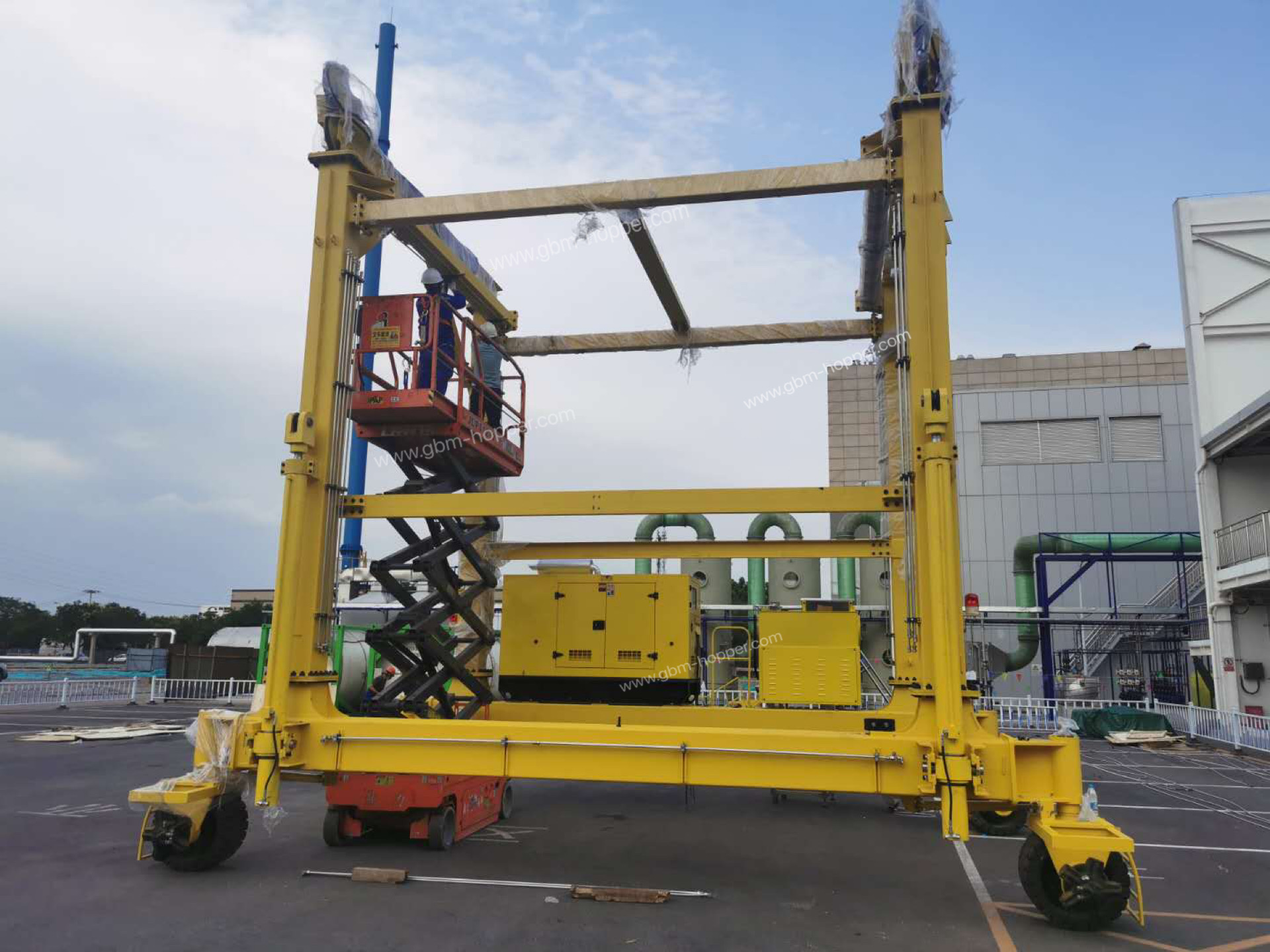

Straddle carrier
Main technical parameters
REF |
DESCRIPTION |
|
1 |
Capacity |
40 tons |
2 |
Overall Height |
6.0 m |
3 |
Lifting Speed |
2.5 m/min |
4 |
Frame Lifting Speed |
2.5 m/min |
5 |
Adjust contraposition Speed |
0.6 m/min |
6 |
Maximum Travel Speed |
45 m/min |
7 |
20 foot box turnover angle |
45° |
8 |
40 foot box turnover angle |
26 ° |
9 |
Wheelbase |
5.8 m |
10 |
Track Front |
3.8 m |
11 |
Width Load Area |
3.2 m |
12 |
Ground Clearance Under Cab |
0.3 m |
13 |
Minimum Outside Radius |
6.5 m |
14 |
Outline Dimension |
12.19 m*5.16 m*5.9 m |
15 |
Operation Mode |
RF Remote Control |
16 |
Prime Motor Power |
110 KW |
17 |
Dead Weight |
34.8 tons |

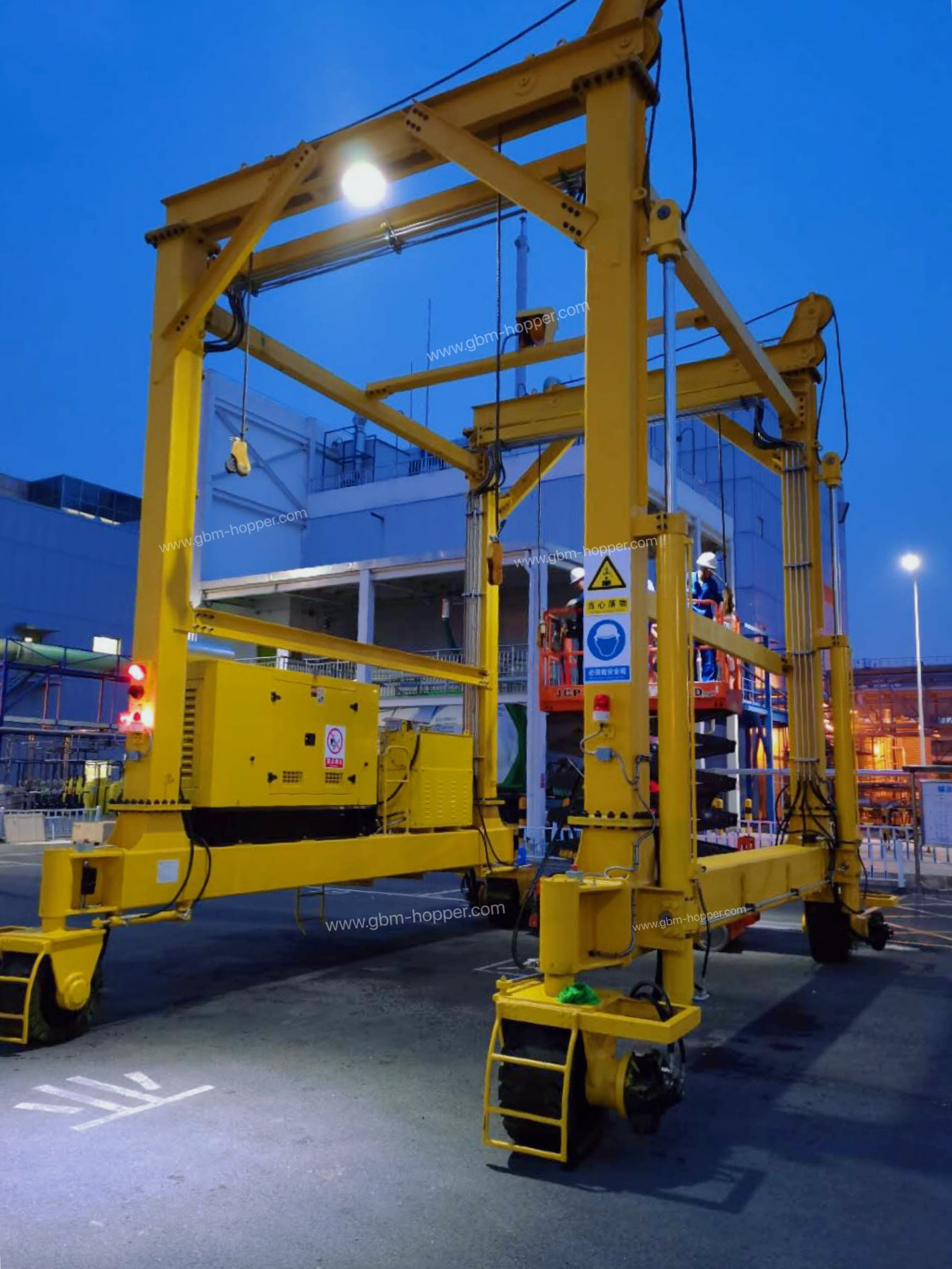

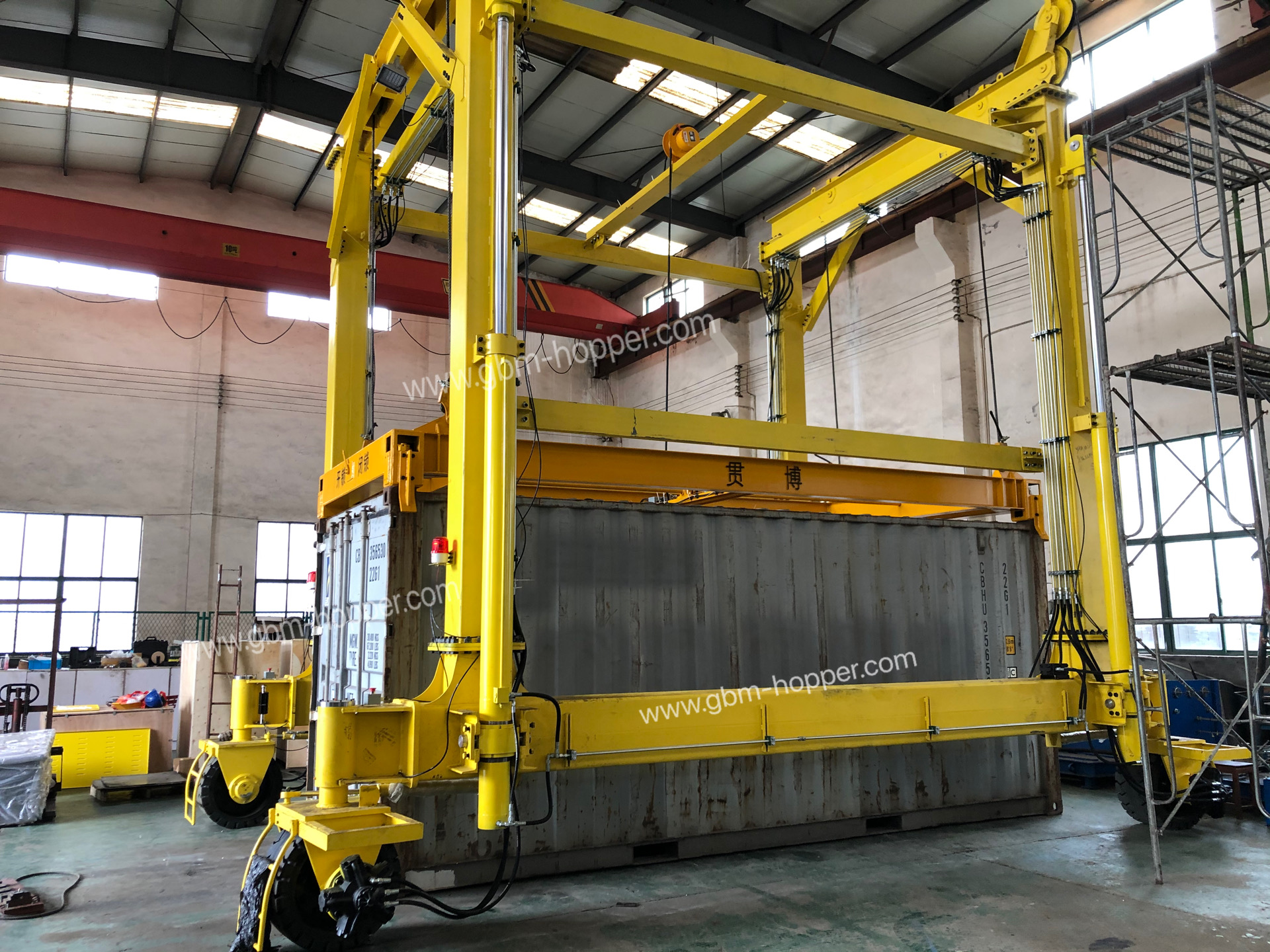

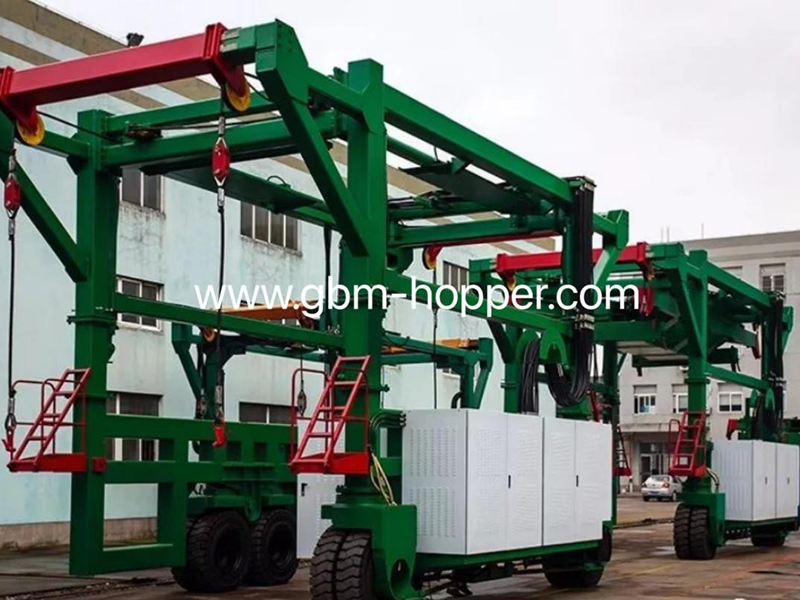

20foot container operation

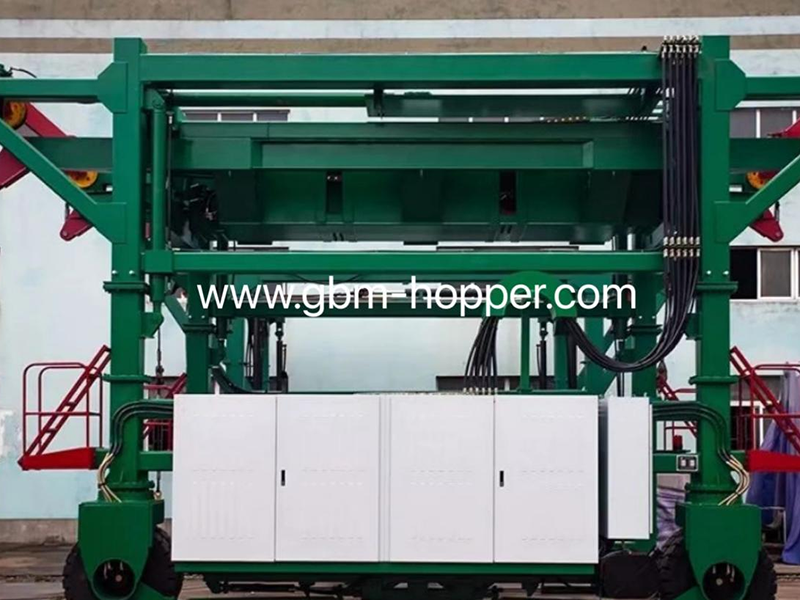

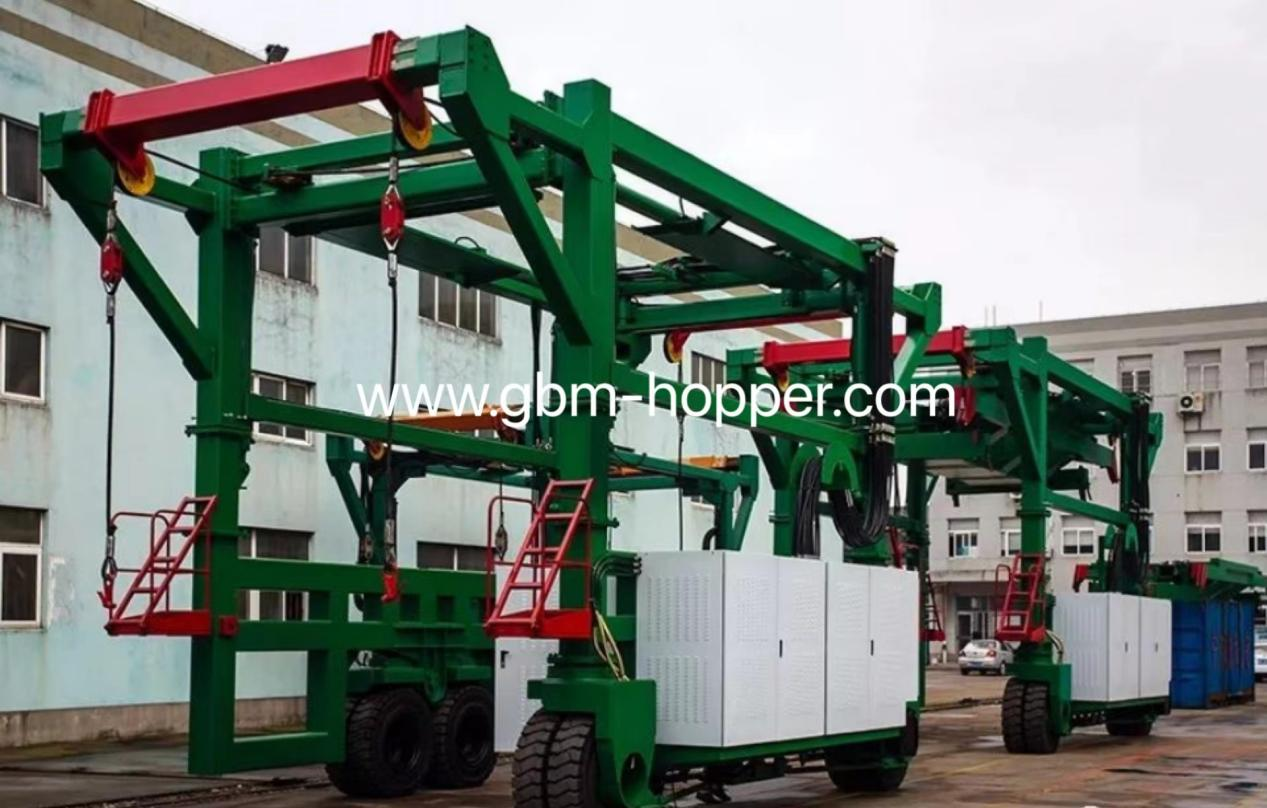

Feature of GBM straddle carrier
• Rated load lifting capacity:40tons.
• High efficiency of handling,stacking and overturning operations for over length,over width or overweight subjects.
• Extensive use with good unit price,low operating cost,quick investment return.
• Full hydraulic drive with 3 Support point design assures maximum stability and fully landing of the wheels.
• Swerve radius minimum, maximum tonnage capacity with narrow and limited passageway space.
• The solid tire wheel design with 8 wheels combination, which has large diameter, wide wheel surface, highelasticity and high load-bearing, reduces the grounding specific pressure during heavy load operation and reduces the requirement of working ground road.

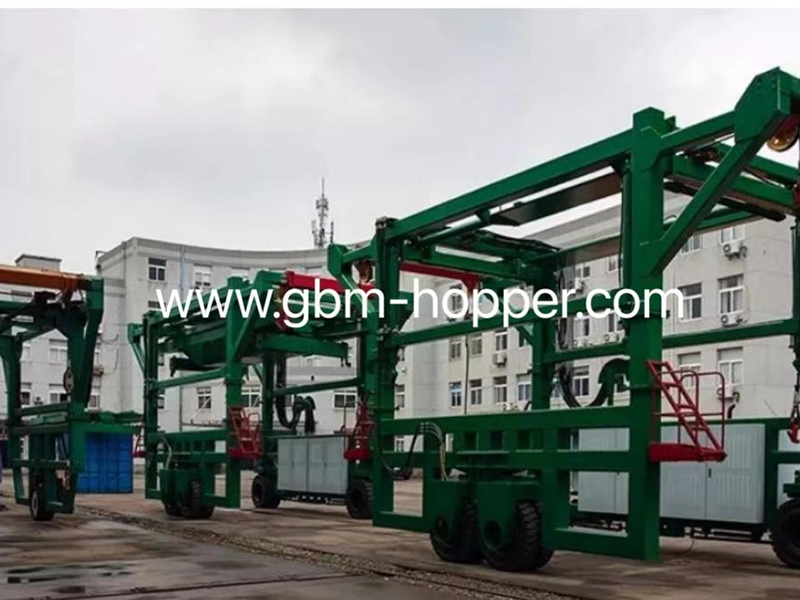

Feature of GBM straddle carrier
• Adjustable operation speed,zero speed braking,no need brake maintains.

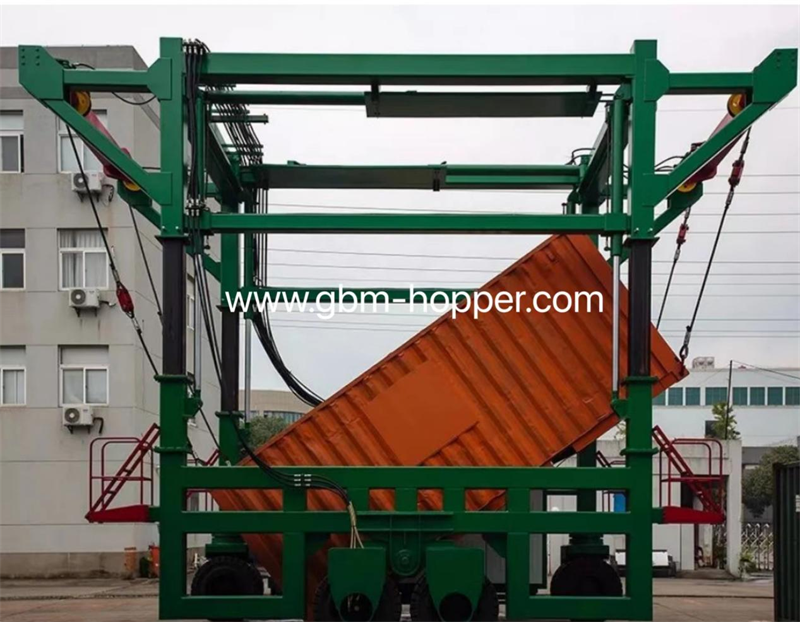

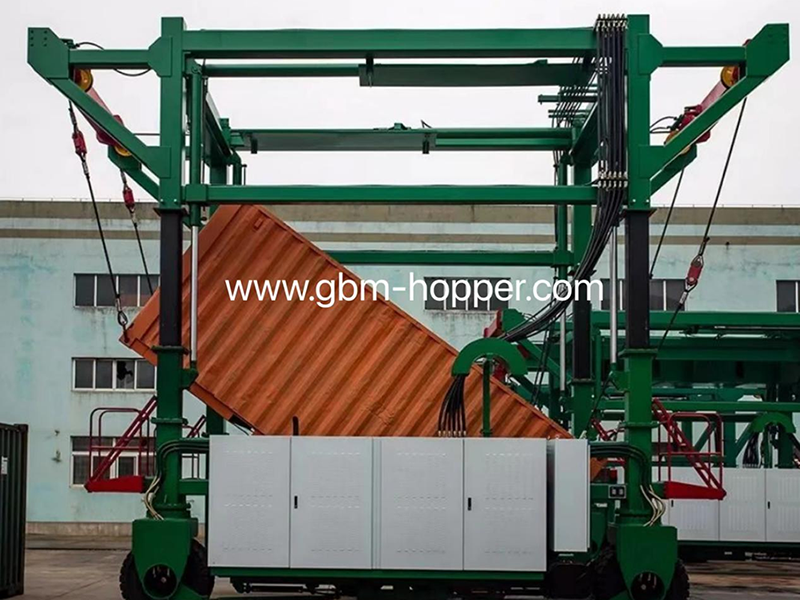

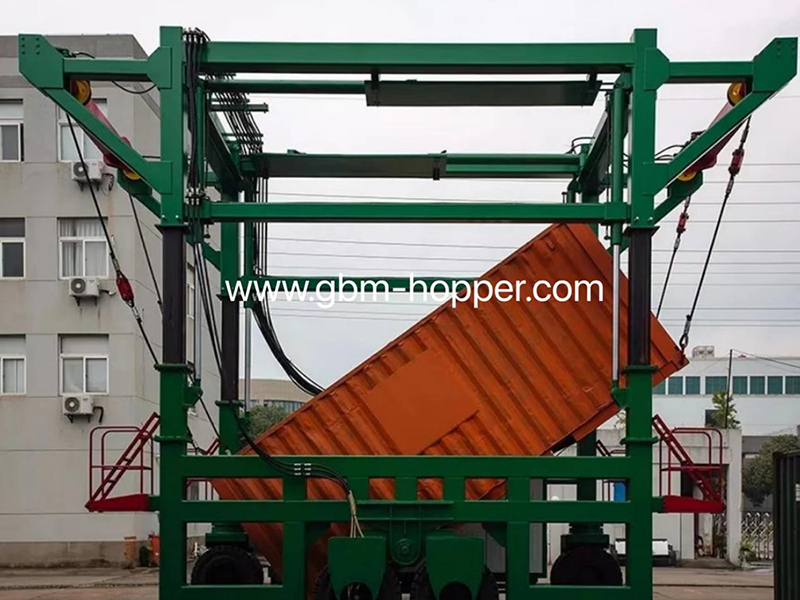

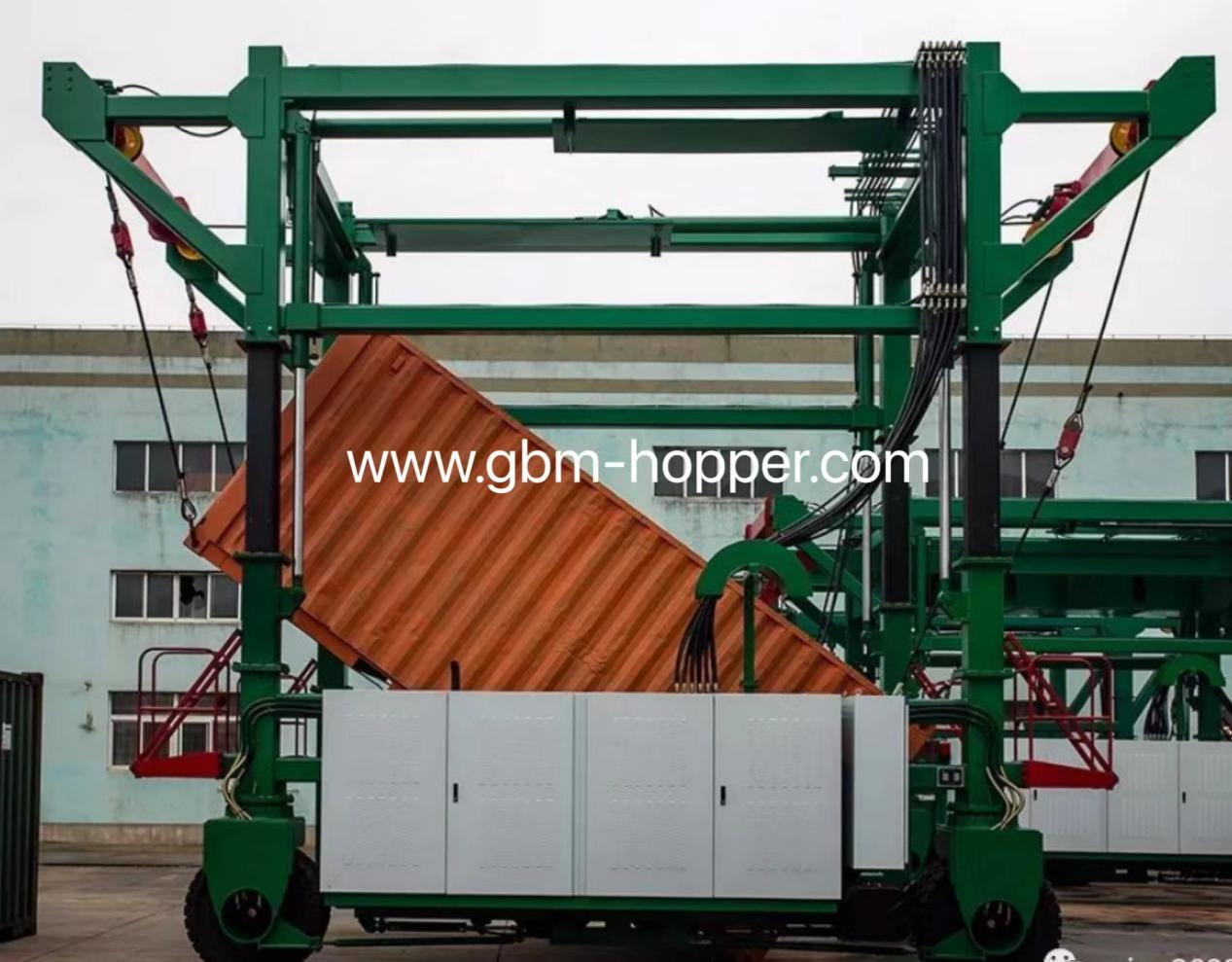

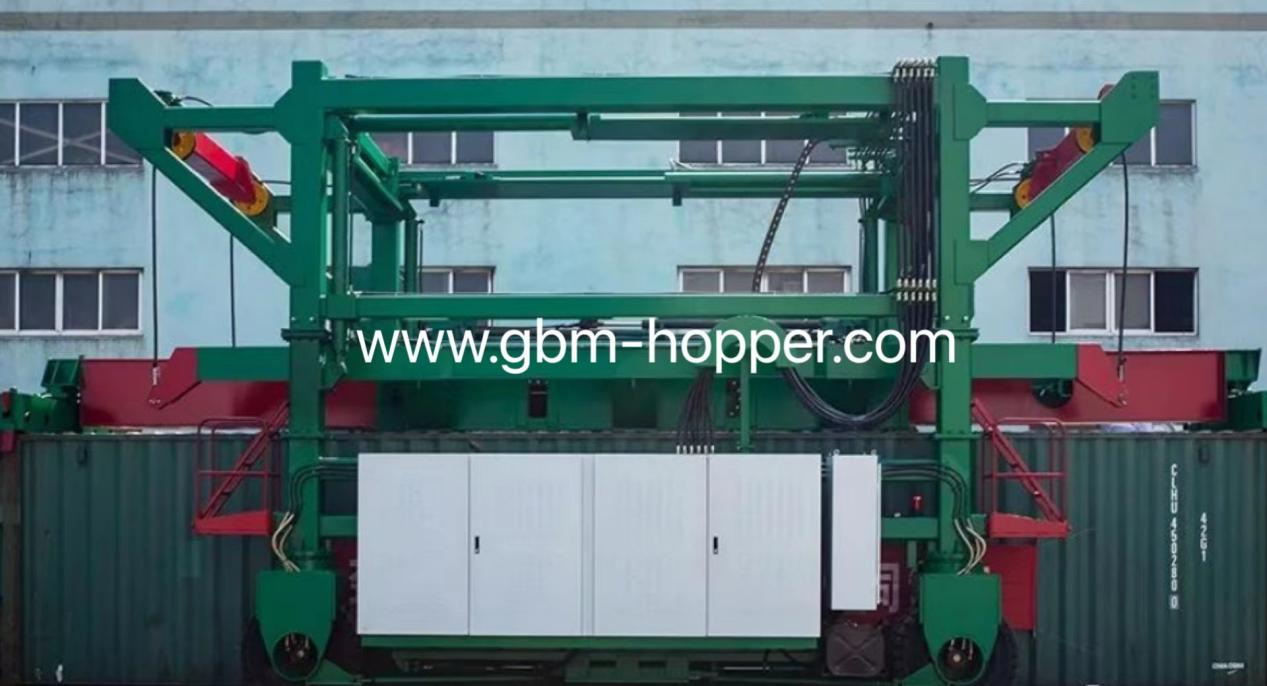

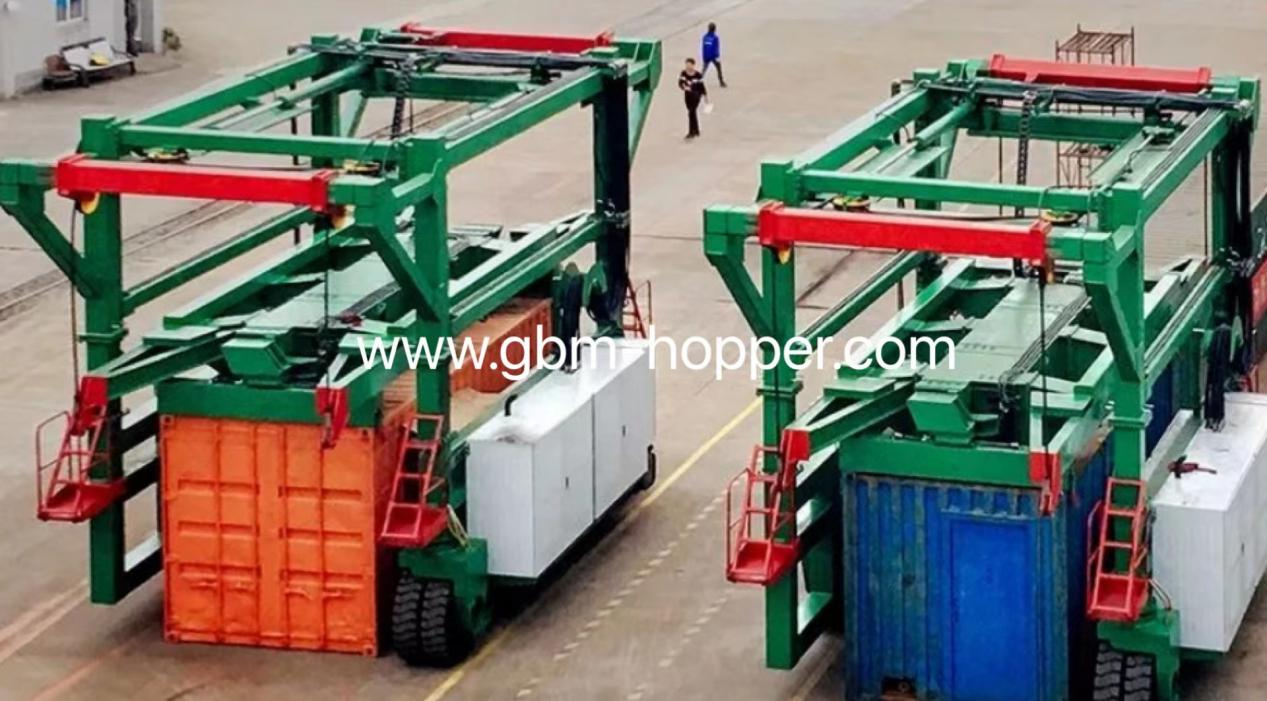

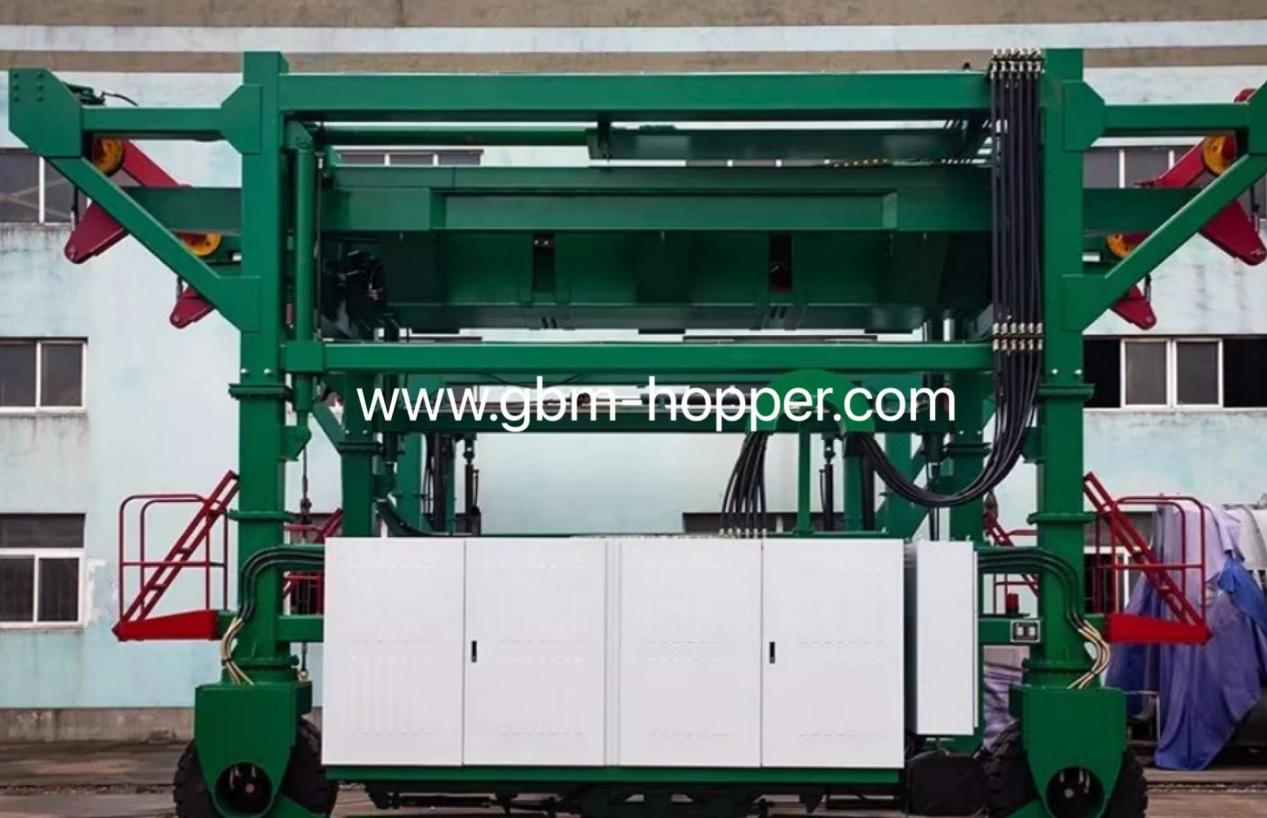

• When using wire rope, the maximum turning angle of 20-foot container is 45 degrees, and that of 40-footcontainer is 26 degrees, which basically meets the requirement of one-time turning loading and unloading of bulk cargo.
• Customization for various special lifting devices(non-standard, private use, lifting spreader, etc.).
• Frame modular demountable structure,easy installation.
• Wireless remote control ability and handle ability dual control lever with real-time operating system,achieves unlimited sight.
• Whole product with propersize and maneuverability.
• Can add extra weigher andheight restriction digital indicator safety system.

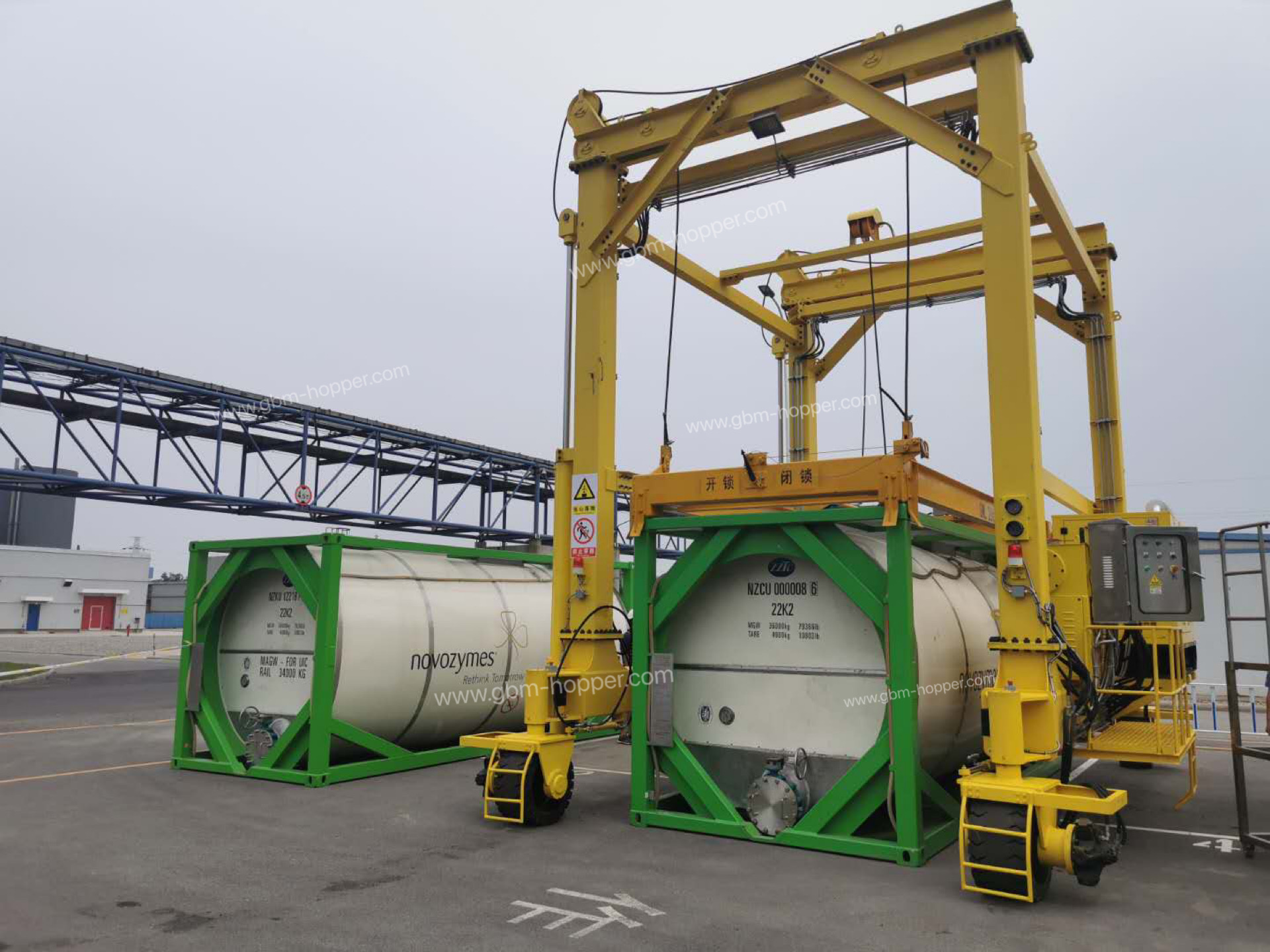

GBM straddle carrier experience in career
2units traddle carrier
Project located in China
1units traddle carrier
Project located in China
6units traddle carrier
Project located in Malaysia
Q&A
Yes, every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Yes, GBM has own installation teams in China and overseas,we can provide service even during covid-19.Also, any kind of lifting toolswill available for your instruction.
1.What's the container you usually handle ?
2. Where will you use the straddle carrier?
3. Do you need container spreader from us?
4. What's the handling efficiency you want?
1) The general layout of the hopper(including the main dimensions and performance parameters) and the structure specification.
2) Layout drawing, assembly drawing and processing drawing of wearing parts of each mechanism of the hopper
3) Electrical equipment system diagram, layout diagram, wiring diagram, and control principle diagram.
4) Cable, conduit or trunking layout.
5) The schematic diagram of the hydraulic system and its description.
6) Product structure diagram of purchased parts, instruction manual and maintenance manual.
