Wireless remote control grab

Short Description:

The wireless remote control grab is a kind of bulk grab that can be applied to the single cable grab in the air. It is usually used with a single-hook crane, which solves the difficulty of traditional single cable grabs with low working efficiency and large operation intensity. For single-hook type cranes and ship cranes, its work is reliable and easy to operate. The grapple comes with a closed hydraulic system. The wireless remote control device is used to realize the opening and closing of the grab. It not only has the characteristics of simple structure and reliable use of the rope grab, but also has the characteristics of high production efficiency of the power grab. It is widely used in ships, ports, stations, factories, mines and other industries. It is an ideal tool for handling bulk cargoes such as coal, mineral powder, bulk chemical fertilizers, and yellow sand.The wireless remote control grab can work under harsh environment such as high temperature, cold, dust, rain, etc. and its performance is not affected.The remote control distance can reach more than 100 meters. The grab uses high-performance battery. After each charge, the grab can be Continuous operation for more than 100 hours. Connection to the crane: The balancer of the grab can be used directly on the hook of the crane.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Example Video

    Qualifications

    Model

    Application

    Technology

    Product Tags

    Advantage of wireless remote control grab

    ● NO motor,pump and generators.

    ● Up to 400 hours non-stop working without recharging of batteries.

    ● Up to 100 meters operating range Heavy duty remote controller.

    ● Kick plates for reduce the capacity in order to handle different types of bulk cargoes.

    ● Less Maintenance

    ● Simple and basic hydraulic system,central hydraulic cylinder and hydraulic block unit.

    ● Easy Installation and Fitting

    ● Possible to use any type of crane Always ready to use with all accessories.

    ● NO need additional accessories on vessel like cable drum

    ● Decreased cycle time thereby reducing operational cost.

    ● Enhanced ease and convenience of operation.

    ● Into any kind of Hopper irrespective of the size

    ● Can be operated from a distance of 100 meters.

    ● Shockless,noiseless and smooth operation.

    ● Import key parts

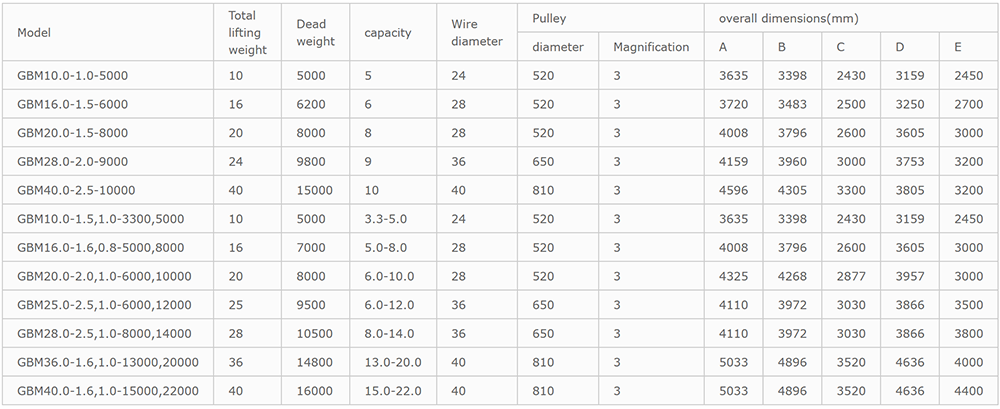

    Data for GBM remote control grab

    Model:Radio remote control grab
    Volume: 3-30m3
    Crane SWL: 10-50T
    Certification: ABS,BV,CCS, DNV,LR,NK,ISO
    Suitable for crane: deck crane, port crane
    Material Density: up to 3.0t/m3. Such as grains,soda ash,coal and iron ore etc.
    Capacity adjust:4 Line Kick plates
    All Kick Plates are fitted:12CBM 1st kick plate is taken out:10CBM
    2nd kick plate is taken out:8CBM
    3st kick plate is taken out:6CBM
    4th kick plate is taken out:5CBM

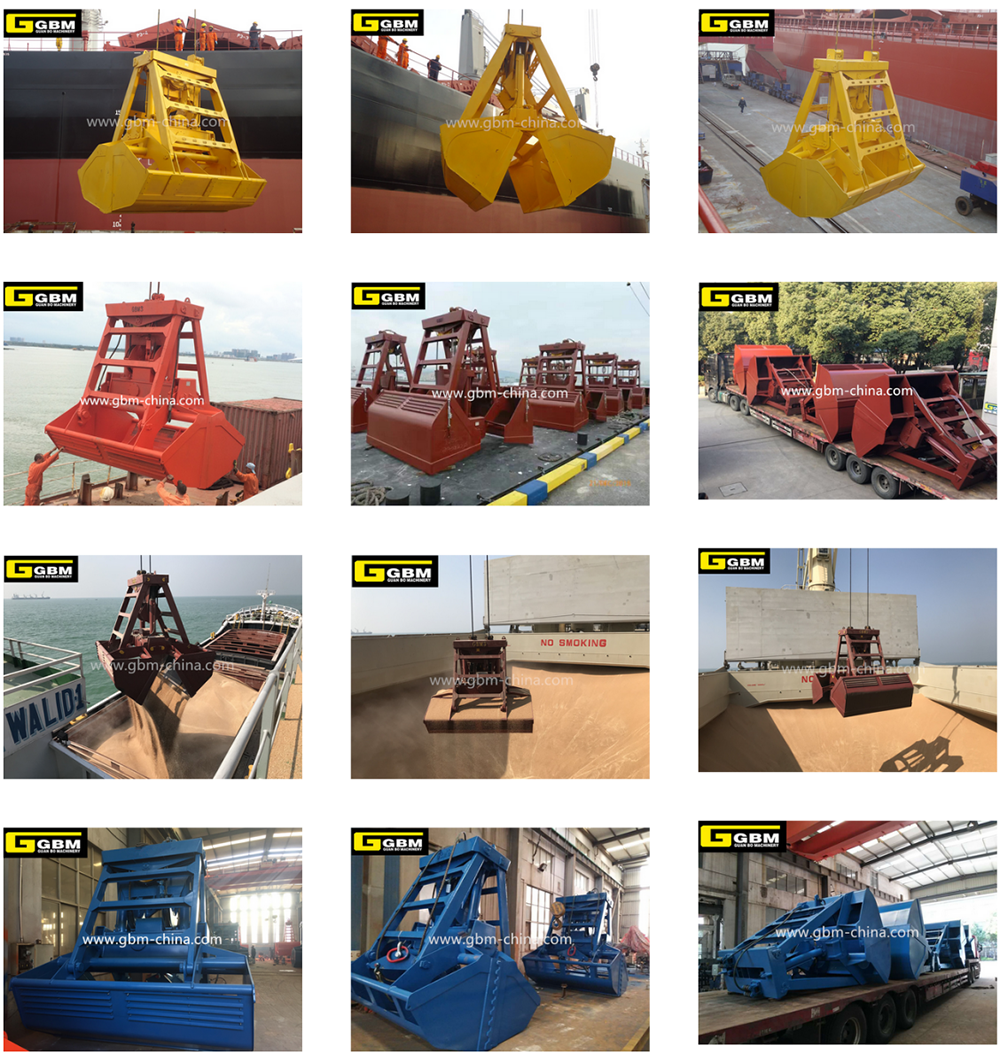

    GBM grab experience in career

    Wireless remote control grab9

    30 unit 6-12CBM remote control grab
    Project located in Bengal

    Wireless remote control grab10

    4 unit 10CBM leak proof grab
    Project located in US

    Wireless remote control grab11

    8 unit 8CBM remote control grab
    Project located in Vietnam

    Wireless remote control grab12

    8 unit 8-12CBM leak proof grab
    Project located in Indonesia

    Wireless remote control grab13

    20 unit 6-12CBM remote control grab
    Project located in UAE

    Wireless remote control grab14

    12 unit 6-12CBM remote control grab
    Project located in Hongkong

    Wireless remote control grab15

    6 unit 14CBM leak proof grab
    Project located in Greece

    Wireless remote control grab16

    6 unit 6-12CBM remote control grab
    Project located in Columbia

    Wireless remote control grab17

    12 unit 14CBM one cylinder grab
    Project located in Argentina

    Wireless remote control grab18

    12 unit 15CBM remote control grab
    Project located in Japan

    Wireless remote control grab19

    8 unit 7CBM leak proof grab
    Project located in Mexico

    Wireless remote control grab20

    11 unit 12CBM leak proof grab
    Project located in Algeria

    RFQ for remote control grabs

    Q1. Can the grab be customized?

    Yes, every customer's working condition is different, all of our products can be customized depend on customers' requirements.

    We could design leak proof, grab bucket with different capacity etc.

    Q2. How is shippment of wireless remote control grab?

    Normally shipping grabs in special containers FR,or bulk cargo vessel,which requires careful planning and preparation. Always make sure the hopper is secured so it doesn't slide around during transport.

    GBM have it own experienced department for safe delivery,utilizing the services of a professional will ensure that the remote control grab is securely in place and the container is ready to ship.

    Wireless remote control grab24 Wireless remote control grab25

    Q3. Do you have installation team for test at shipyard?

    Yes, GBM has own installation teams in China,not limited to use, we also have over-sea after-sales service and emergency spare parts reserves.

    Wireless remote control grab26

    Q4:What is information do you need for provide drawing?

    1.Where is the grab installed? Overhead cranes, gantry cranes or marine crane?

    2. What is the main lifting material?

    3. What is the grab volume required?
